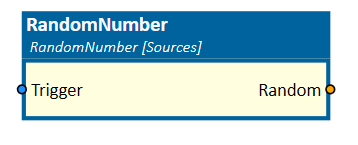

RandomNumber

This simulation component outputs a random double value.

When to use

Use this simulation component if you want to output a random double value when the simulation component gets triggered.

How to use

Add this simulation component from the simulation component library. When the simulation is running and the input Trigger is triggered, the simulation component outputs a random numeric value.

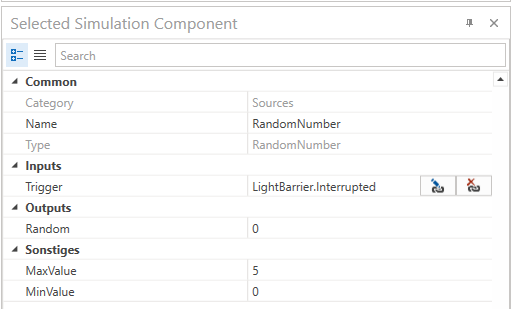

Parameters

MaxValue

A value indicating the upper limit of the random double output.

MinValue

A value indicating the lower limit of the random double output.

Inputs

Trigger

If triggered, this input generates a Random numeric double value.

Outputs

Random

Outputs a random double value.

Example

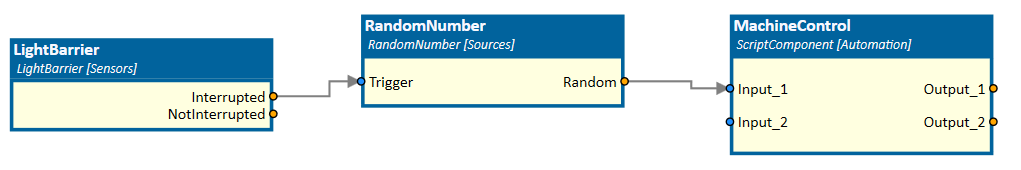

In this example, the LightBarrier simulation component triggers a random double value between 0 and 5 when the ray gets interrupted.

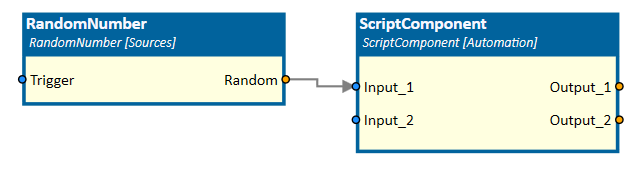

The machine control, which was mapped with the help of the ScriptComponent simulation component, processes this value and must react accordingly.
