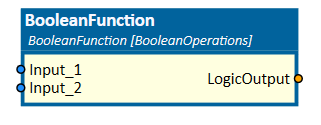

BooleanFunction

This simulation component provides the capability to output the result of a boolean function (e.g. AND, OR) on an arbitrary number of inputs.

When to use

Use this simulation component if you want to compare some inputs and output the logic result using a defined logic operator.

How to use

Add this simulation component from the simulation component library. Define an arbitrary number of inputs you want to compare with each other and choose a logic operator. Connect output signals with the inputs of the BooleanFunction simulation component and start the simulation.

Parameters

Function

Indicates a boolean function which compares your inputs and produces an logic output value.

Input 1	Input 2	LogicOutput with "OR"	LogicOutput with "AND"
true	true	true	true
true	false	true	false
false	true	true	false
false	false	false	false

NumberInputs

Indicates the number of inputs you want to compare with each other.

Inputs

After the user defined the number of inputs, all inputs are listed here.

Outputs

LogicOutput

Indicates the result of your compared inputs using the current logic operator.

Example

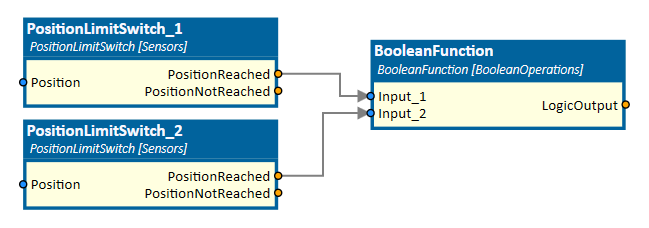

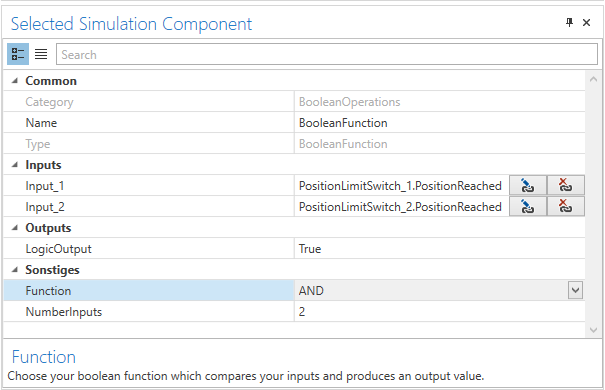

In this example, the logic AND function is selected and two inputs are defined by the user. The outputs of two PositionLimitSwitch simulation components are connected to the inputs. The output LogicOutput shows the result of the logic operation applied to the inputs.
