LinearFunction

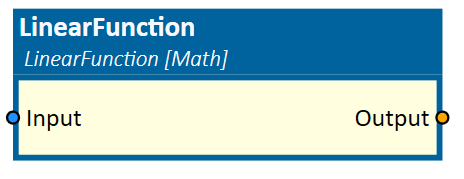

This simulation component outputs the result of the linear function Output(Input) = Slope * Input + Offset.

When to use

Use this simulation component if you want to change the offset and slope of an input signal. You can for example convert unit-less signals into signals which have a defined unit or vice versa.

How to use

Add this simulation component from the simulation component library and define the parameters Offset and Slope.

Parameters

Offset

A value indicating an offset which is added to the input signal.

Slope

A value indicating a factor with which the input signal is multiplied.

Inputs

Input

The input to the LinearFunction block.

Outputs

Output

Outputs a value which is calculated by the formula Slope * Input + Offset.

Example

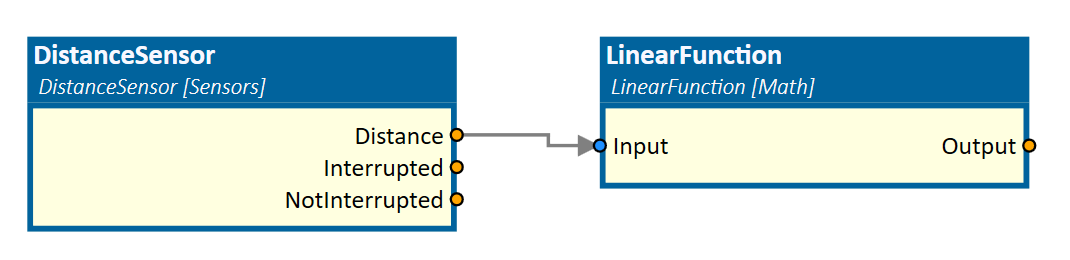

In this example, the distance output of a DistanceSensor simulation component is connected to the LinearFunction block. The distance is scaled between a lower and upper sensor limit, e.g. from 0 m ... 0.5 m, to an analog value, e.g. from 0 ... 27648.

To calculate the Slope we can use the following formula:

Slope = (adc_upper - adc_lower) / (upperLimitSensor - lowerLimitSensor)
Slope = (27648 - 0) / (0.5 - 0)
Slope = 55296

The offset is calculated as follows:

Offset = adc_lower - (slope * lowerLimitSensor)
Offset = 0 - (55296 * 0)
Offset = 0

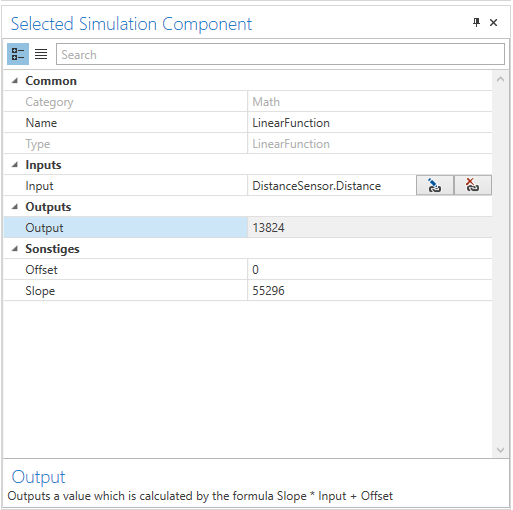

For a DistanceSensor output of 0.25 m the LinearFunction block outputs an analog value of 13824.
