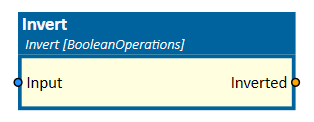

Invert

This simulation component outputs the inverted signal of a boolean input signal.

When to use

Use this simulation component if you want to invert a boolean input signal.

How to use

Add this simulation component from the simulation component library. Connect a boolean output signal to the input Input.

Inputs

Input

The boolean input which will be inverted.

Outputs

Output

Outputs the inverted input signal.

Example

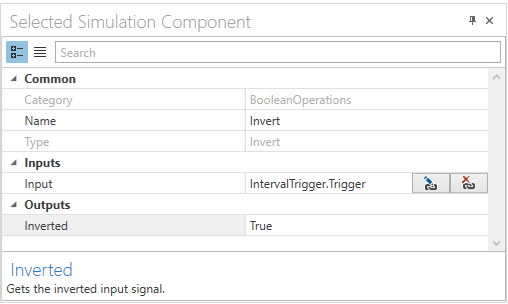

In this example the trigger output of the simulation component IntervalTrigger is inverted.
