Counter

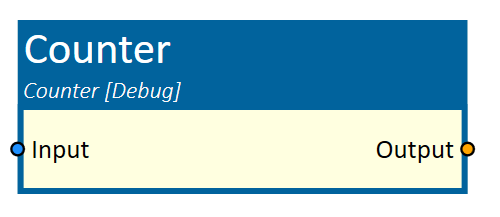

This simulation component outputs the times the Input was set to true.

When to use

Use this simulation component if you want to count the rising edge of a input signal.

How to use

Add this simulation component from the simulation component library. Connect an output which should be counted to the Input of the Counter simulation component and start the simulation.

Inputs

Input

An input which will trigger the Output on the rising edge.

Outputs

Output

An output whose value gets incremented when the Input is set.
